DC Current: N/A

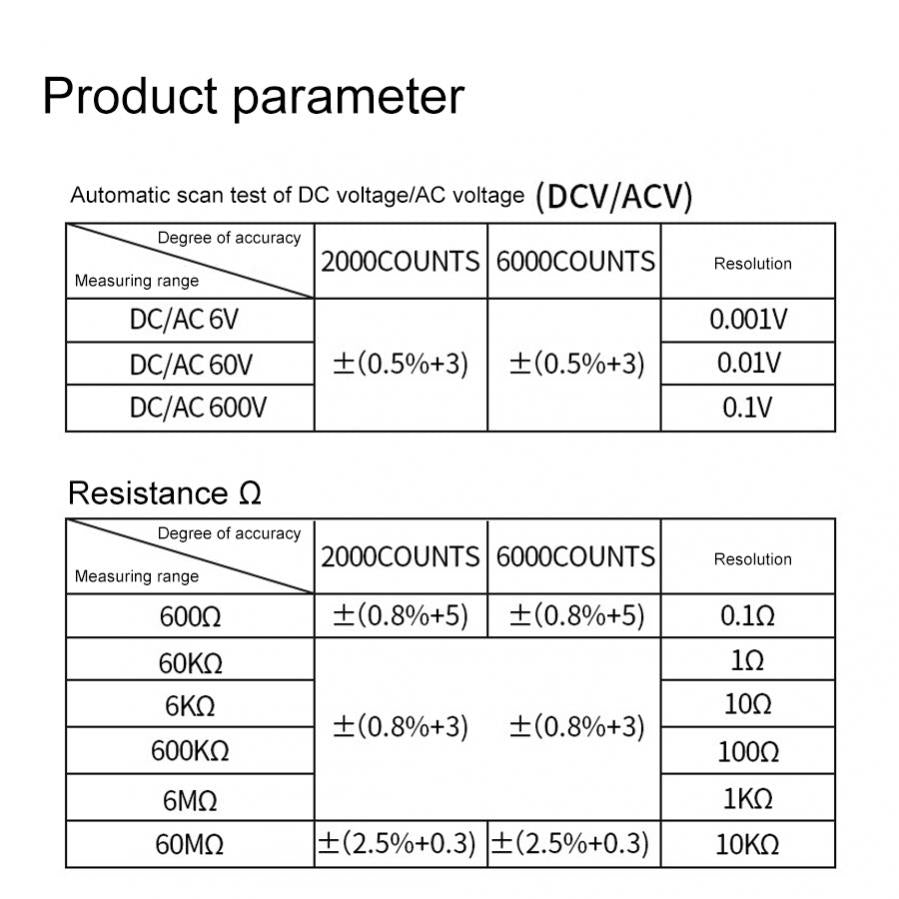

DC Voltage: 6V / 60V / 600V

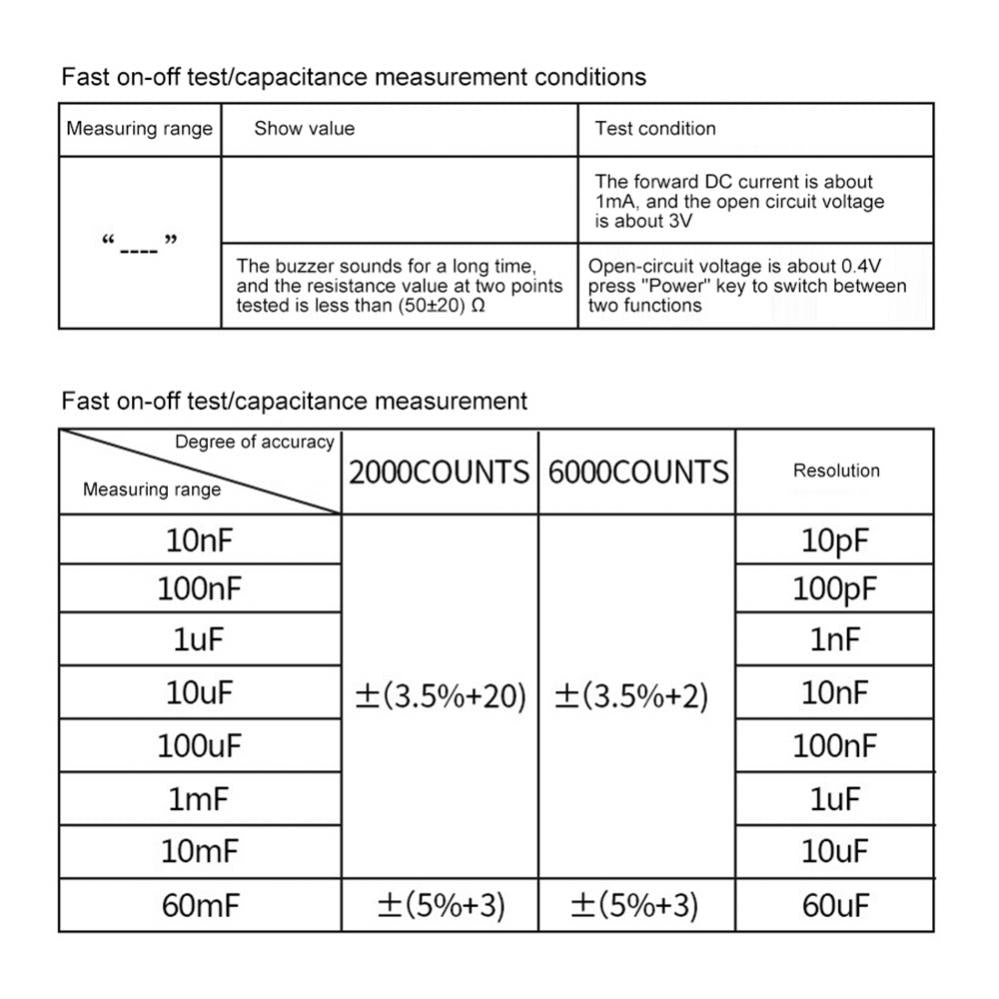

Measuring Capacitance Range: 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF / 60mF

Display Type: Digital Display

Material: ABS

AC Voltage: 6V / 60V / 600V

Max Reading: 6000

Operating Mode: Handheld

Measuring Resistance Range: 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ

AC Current: N/A

Operating Temperature: 0-40℃

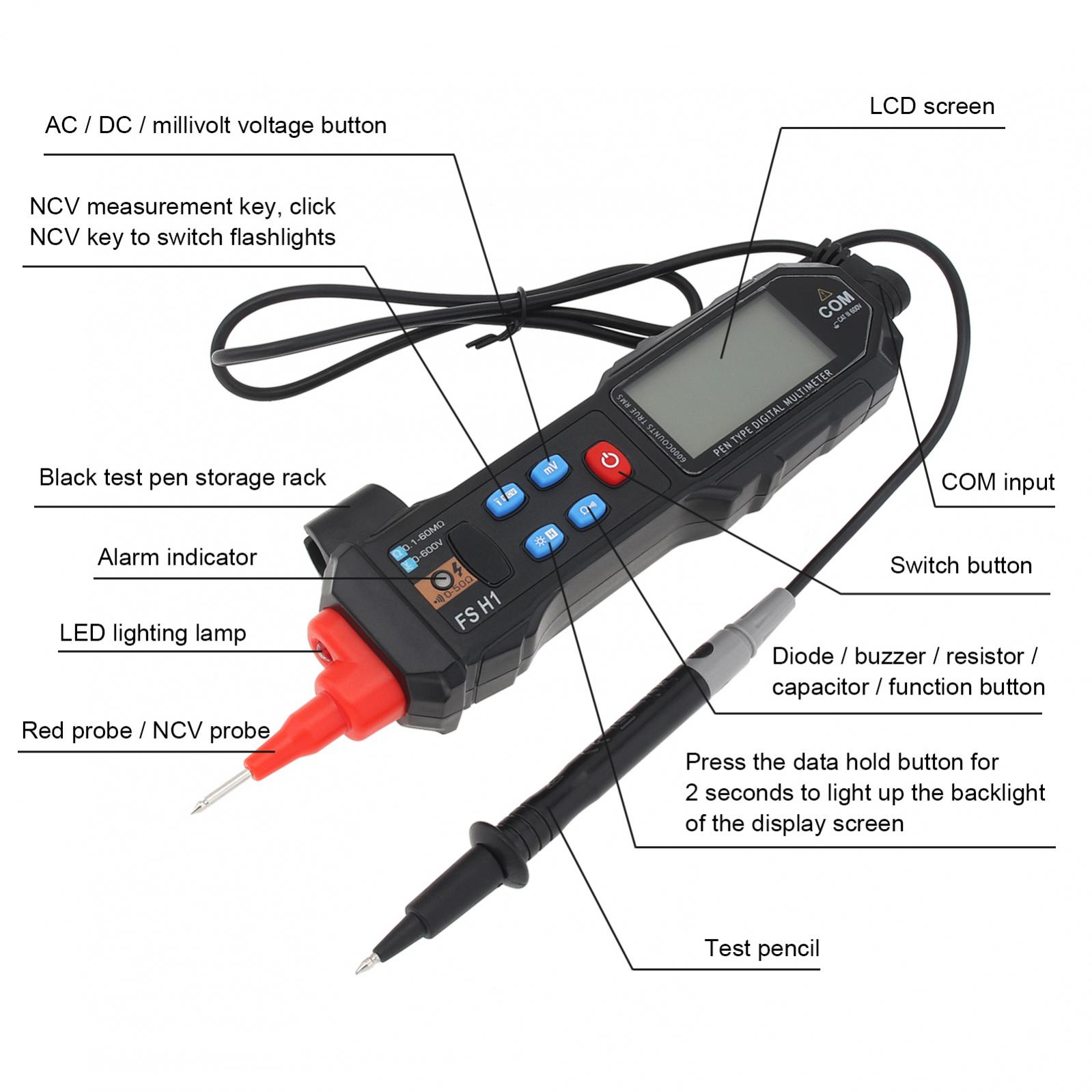

Features:
- Pen style design, smart chip, small and portable, automatic identification and measurement, without manual switching, easy to use.
- Built in non-contact voltage (NCV) detection, no contact measurement is required, breakpoint detection is safer.

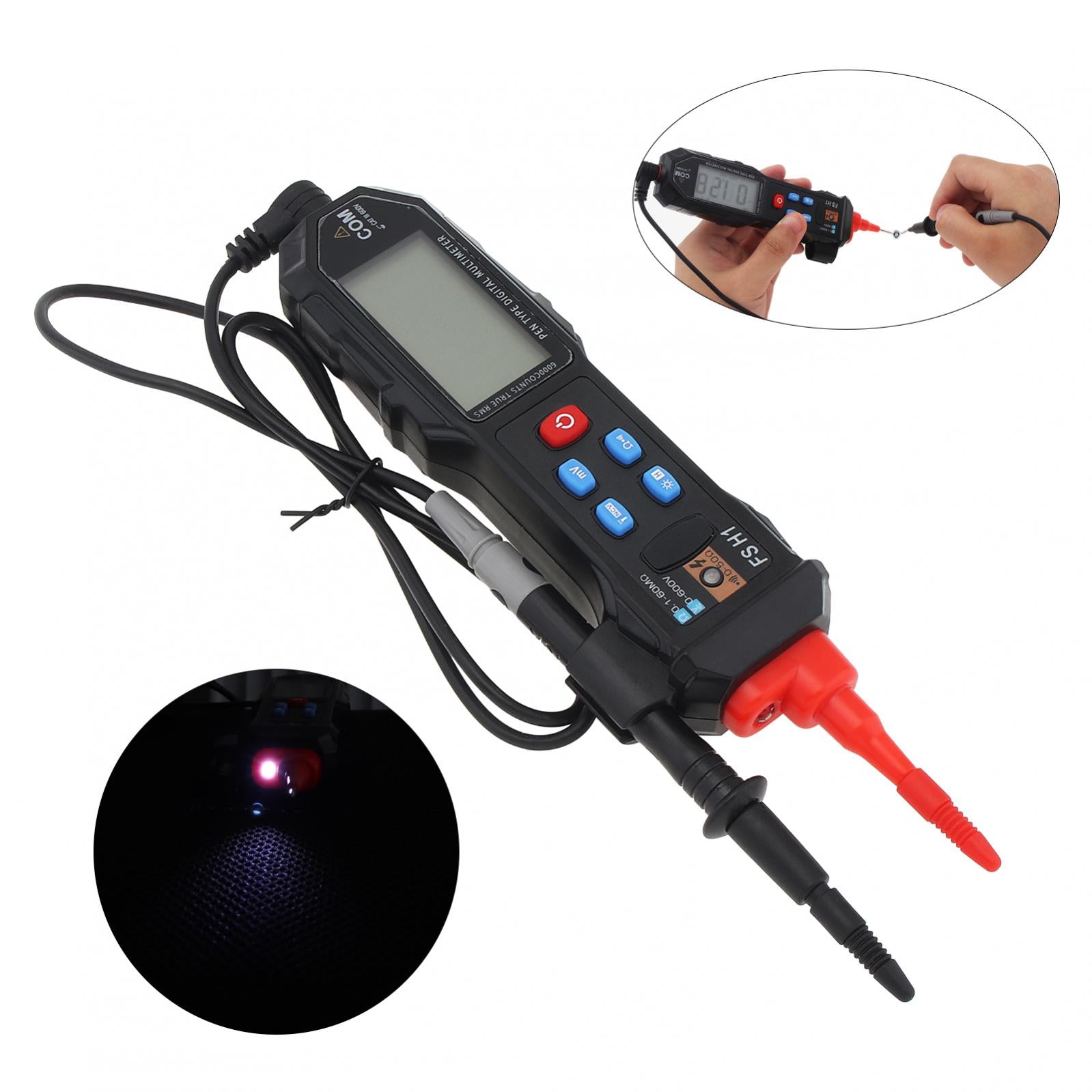

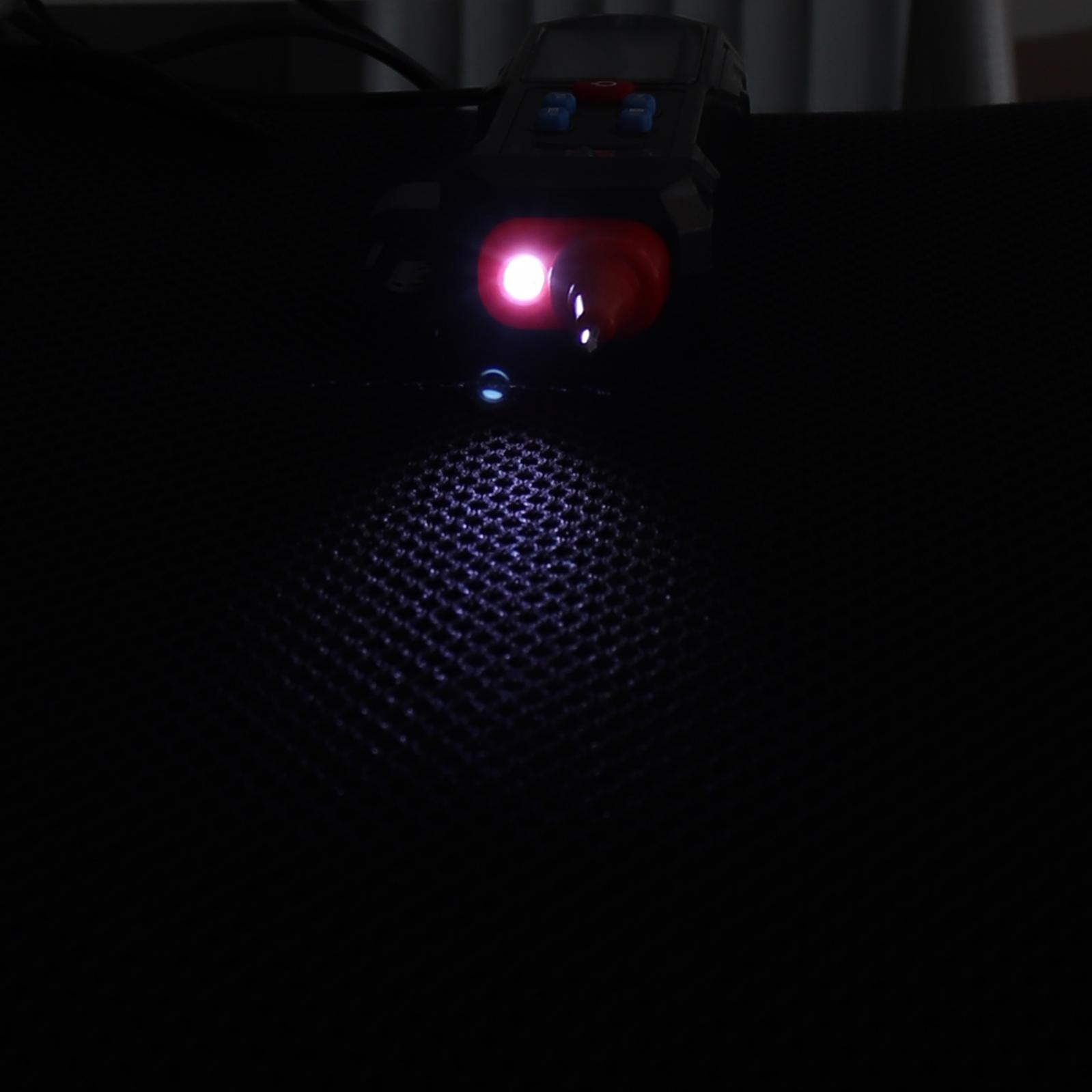

- LCD backlight digital display and LED lighting, clear display of measured values in dim environment, more clear reading and more easy.

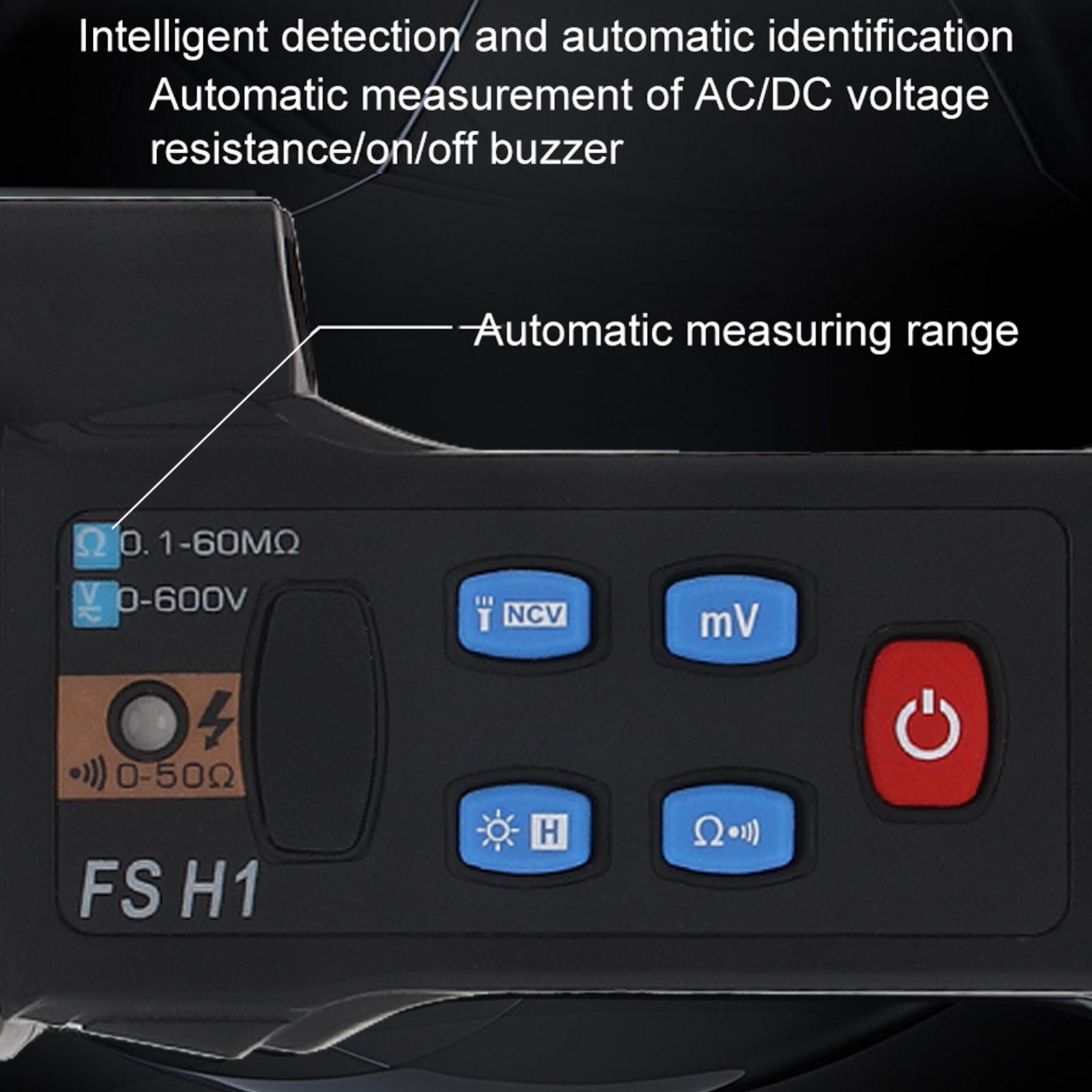

- Intelligent automatic identification and detection, automatic measurement of AC and DC voltage, resistance, on-off buzzer.
- Digital display mini pen multimeter, audible and visual screen alarm, LED high definition digital display, non-contact detection.

Live Wire / Zero Wire Judgment:
1.Live Wire: Red light flashing block, fast buzzer, and voltage figures will appear on the screen;
2.Zero Wire: The red light flashes slowly, the beeping speed is slow and there is a pause, and the word OL will appear on the screen;
3.When using, press the "mV" button twice until the word "AC" on the screen is displayed.

Note:
The data is measured manually, and there may be some deviation, but it does not affect the use.
Due to the difference of equipment and shooting environment, the color may be slightly different, please understand.

Product Weight: 100 G / 3.53 Ounces

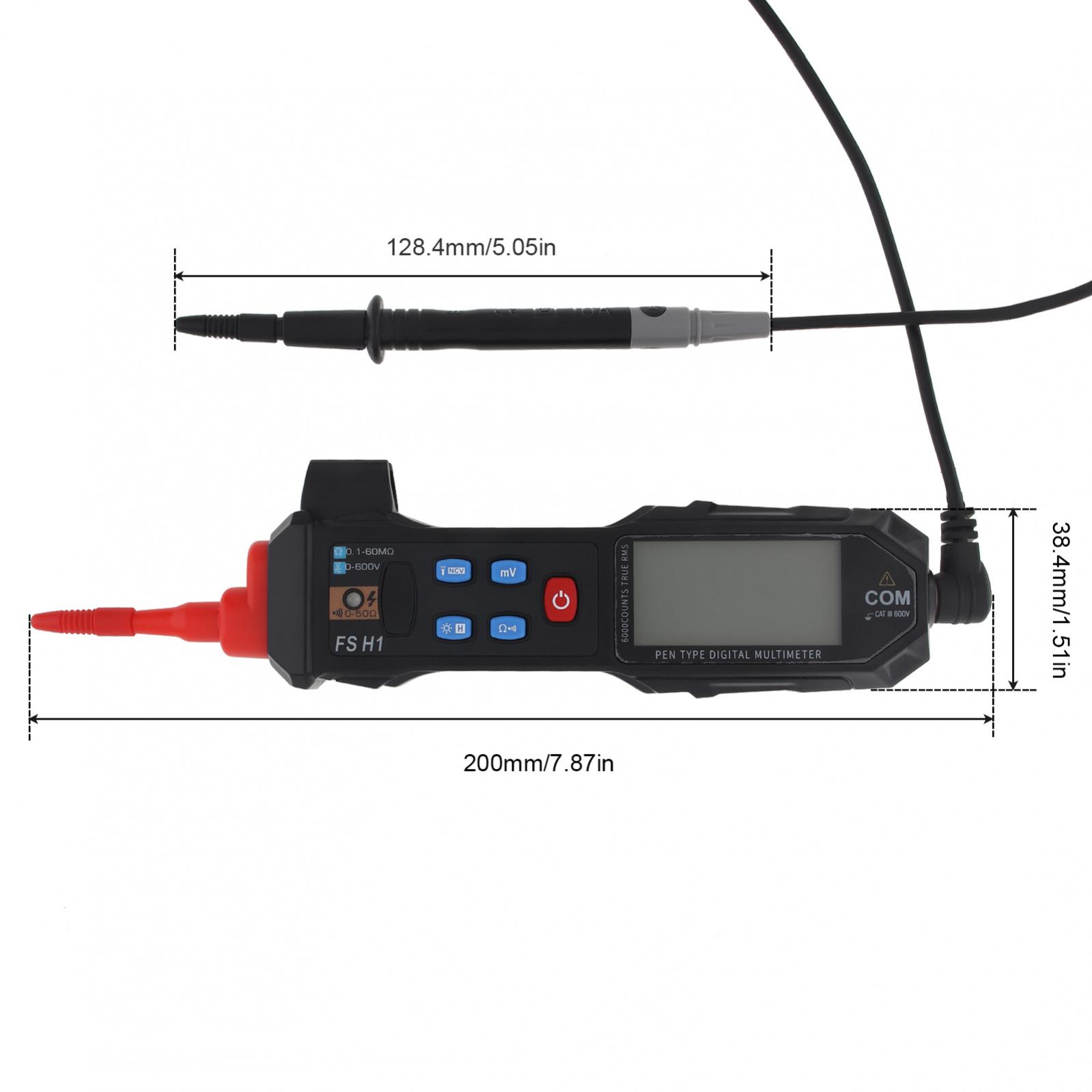

Product Dimensions (L*W*H): 180*48*25 MM / 7.09*1.89*0.98 Inches

Package Weight: 140.0 G / 4.94 Ounces

Package Dimensions (L*W*H): 210*70*35 MM / 8.27*2.76*1.38 Inches

Retail Packaging: Yes, General Box

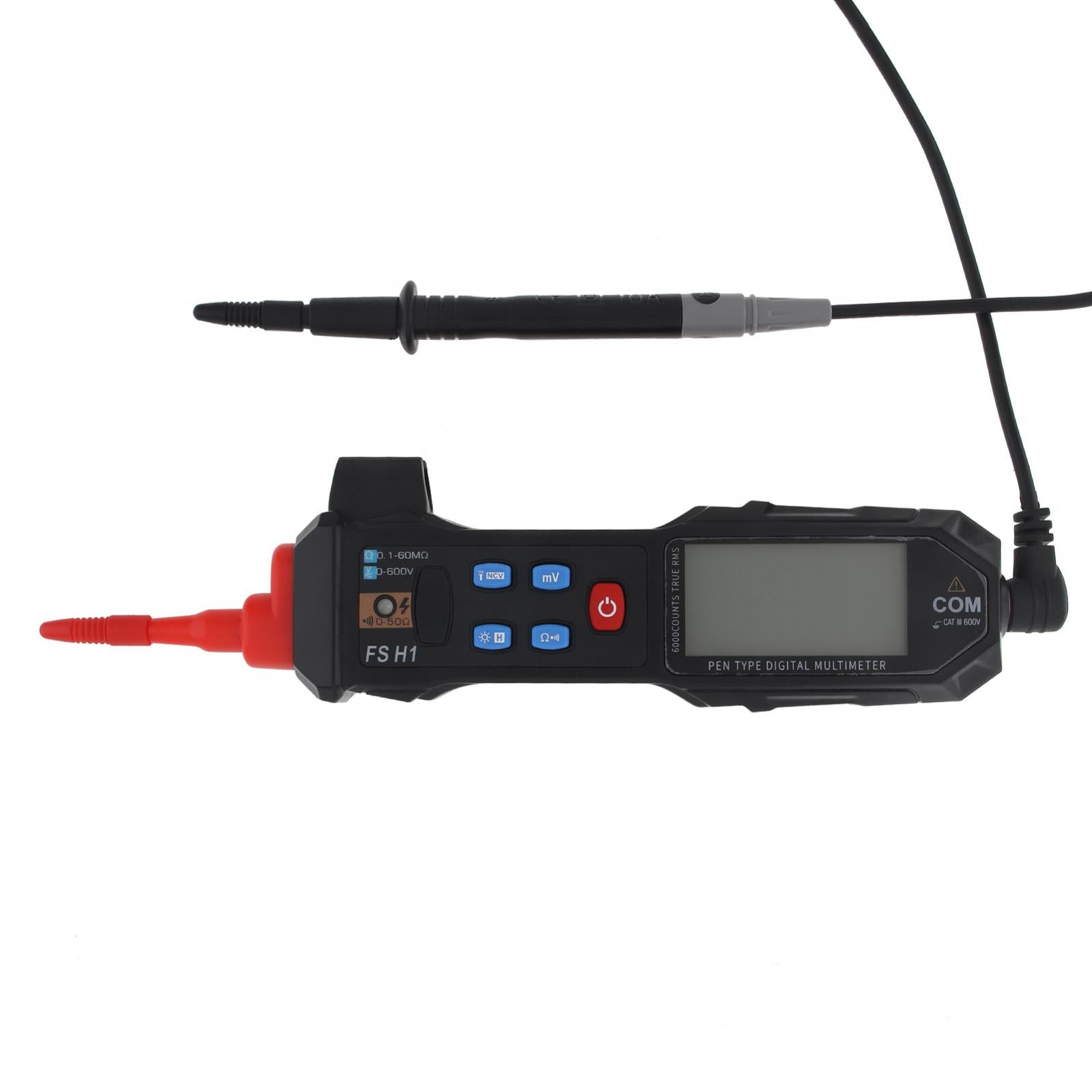

Package Including:

1 x Pen Multimeter

1 x Test Pen
